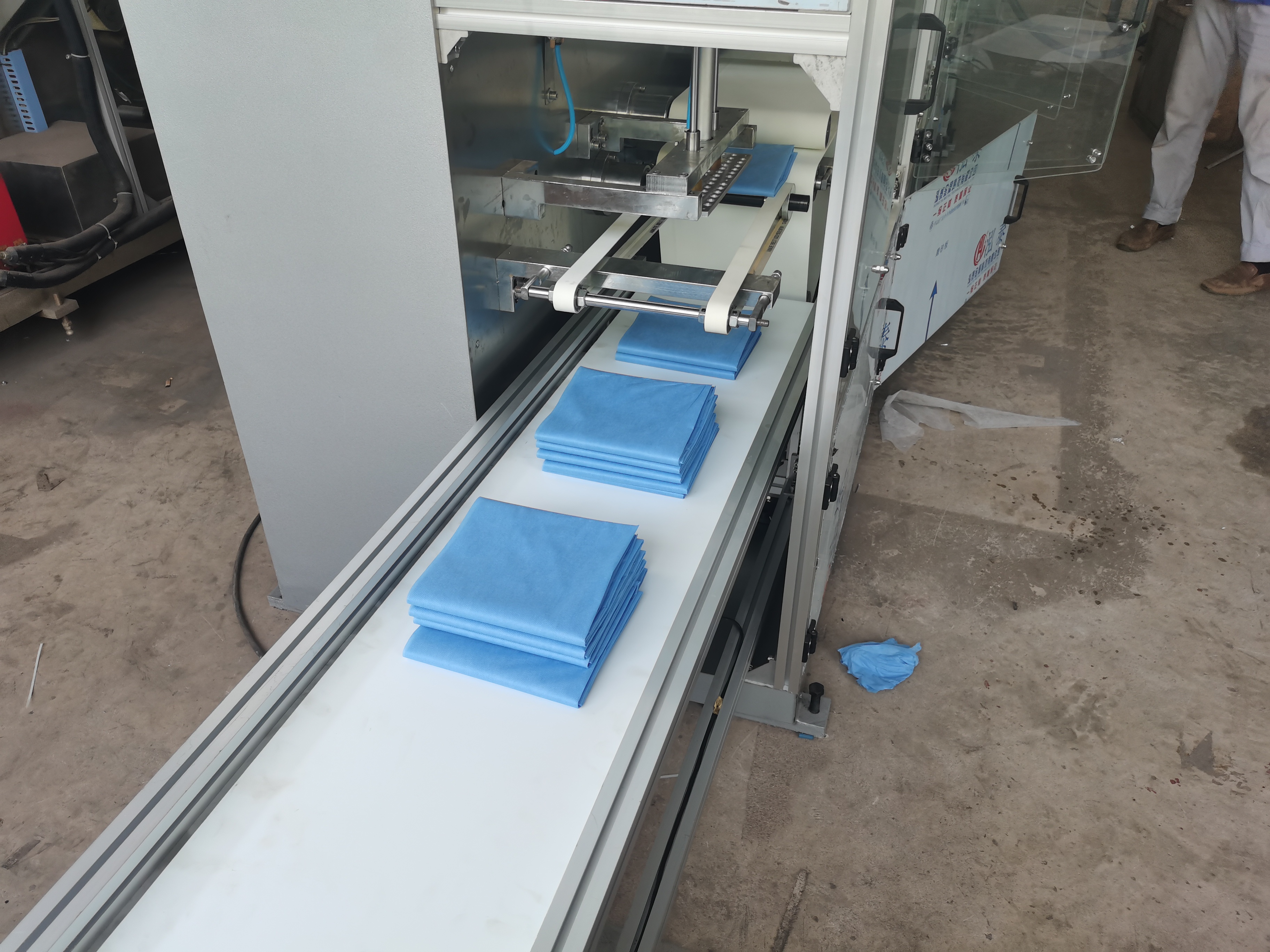

disposable nonwoven bed sheet folding machine

1.   materialwidth: under 2000mm

2.   foldedwidth: under 30cm

3.   cuttinglength :500-2000mm

4.   widthfolding :W

5.   lengthfolding: half fold------half fold -----half fold

6.   otherrequire: place  double face adhesivetape width 60mm – Length900 mm at the edge middle of each drape

Technical parameters

1.   powersupply: AC380v 50hz

2.   power:11KW

3.   designspeed:20-50m/min

4.   dimension:12000*2300*2000mm

    conveyor belt:2000*400*800mm

5.   weight:5000KG

Configuration list

1  Servo drive: Delta (Taiwan)   8sets

2  Motion Controller: Delta (Taiwan) 1 set

3 Touch screen:Delta (Taiwan)   1set

4   Low-voltageelectrical: delixi

5   Airshaft:  2sets

6   Cylinder: 2sets

7  Transformer : 1set

8 Tension control(automatic ):1set

Electronic control system

1 MotionController control system, touch screen man-machine interface operation, easyto operate, humanized design

2 Through theman-machine interface to adjust speed, the size of the finished product ,and Stackingquantity.

3 With Chinese andEnglish operator interface, easy to operate

Installation and terms of Service

1       weprovide door to door service for domestic customers, foreign customers need toinstall the machine by themselves. Our engineer at the request of foreign customerscan door-to-door service, but users are responsible for accommodation, roundtickets visa fees and so on (domestic except). And pay our engineer 100USD oneday

2  The seller isresponsible for equipment packaging costs, use FOB export situation

3 After leaving Shanghaiport the buyer is responsible for the freight, insurance premiums and unloading

Warranty scope and manner

1 Since user as the date of buy is responsiblefor one year warranty.

2 warranty item:machine transmission and electronic control system

Delivery time: 20 days

payment:After 50% of the total value is paid in advance by (T/T),

The left50% should be paid by (T/T) after you check up the finished

machine.And the cargo will be delivered after all the payment

arrivesat our account.
