surgical cap making machine

PERFORMANCE CHARACTERISTICS:

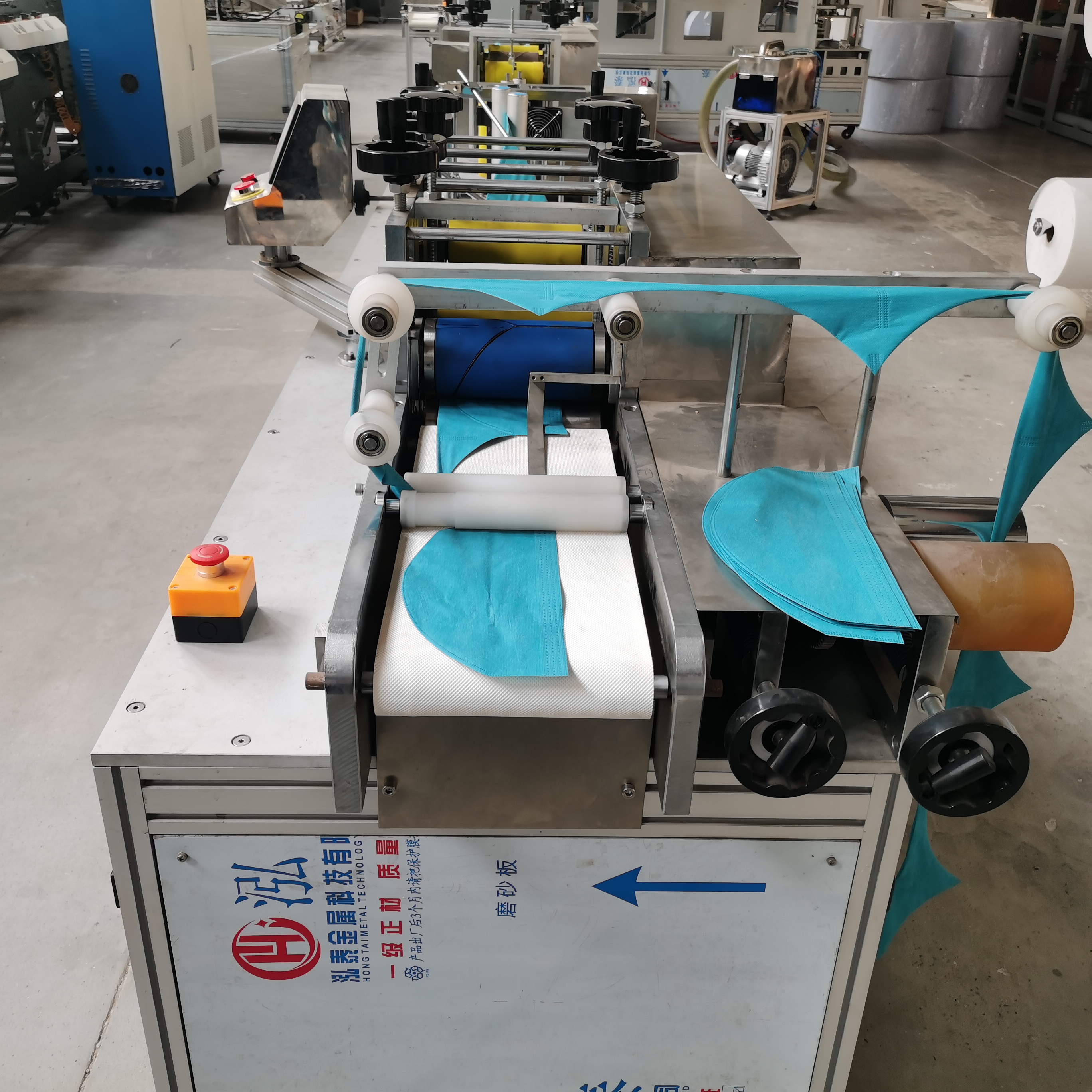

ALT-330 Doctor CapMaking Machine adopt advanced ultrasonic welding to non-woven doctor capforming a fold. It is a fully automatic production machine from raw materialsupplying to finished product output. With PLC system control, the stability ishigh, the failure is low. Import deceleration brake motor effectively reducedthe defect rate of products. This machine with aluminum alloy rack, theappearance is beautiful .Under replacing the mould it can produce the differentspecification doctor caps.

The cap can beapplied to electronic manufacturing, clean workshop, foodand beverage service industry, food processing, school, spray processing, Stamping hardware, hospital, hand-processingindustry, public health centre, beauty salon,

Pharmaceutical industry, factory, public place and so on.

Introduction

1.    Adopting ultrasonic, the welding is form

2.  Theproduct can be adjusted according to the client

3.  Itcan produce the cap with single bar elastic. double bar elastic. and lacing

TECHNICAL PARAMETERS:

Type:ALT-330

Power：8.5kw

PowerSupply:AC380V or 220V

OptimumSpeed:60-100pcs/min

Dimension:8250*1000*1200mm

Weight:1500kg

INSTRUCTIONS:

1.    Ultrasonic welding: 5sets

2.    Motor: 1set

3.    Suction pump: 1set

4.    Touch screen: 1set

5.    Inverter: 1set

6.    PLC: 1set

Material roll width :540mm

Material density:25-50gsm, we use 30gsmalways

1.Half/full elastic cap need :4mm width elastic

2.cut the band from cap: no need othermaterial

Payment: After 50% of the total value is paid inadvance by (T/T),

The left 50% should be paid by (T/T) after you check up the finished

machine. And the cargo will be delivered after all the payment

arrives at our account.

Delivered time: 10days after confirm the order(notincluding the holiday)

Warrant term: 1 year

Package: Wooden Packing
